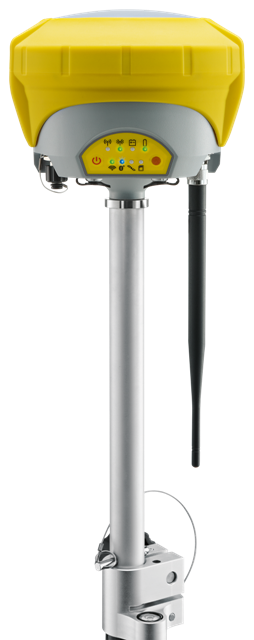

Geomax Zenith35 Enjoy our most compact GNSS receiver. Featuring the full spectrum of satellite signals and unlimited connectivity, the Zenith35 works when you do. It never was so easy to connect to your GNSS receiver. Equipped with DynDNS technology, Zenith35 guarantees you an access from any from any device connected to the Internet, independent of your location, and connects up to 10 rovers simultaneously via GSM. Once connected and either working under heavy canopy or when the most accurate result is require, the Zenith35 unique extra safe mode will adapt to your different working conditions. FULL CONNECTIVITY
COMPACT AND RUGGED
SUPERIOR PERFORMANCE
|
|
* Call us @ 866-USSURVEY for best pricing!
** Not all configurations are necessarily in stock; please allow up to two weeks for delivery and as always, if you have questions we welcome your call or email.
RECEIVER SPECIFICATIONS AdVance® technology: High fix availability + reliability Max. No. of satellites: 60 satellites simultaneously Channels: 120, dual frequency GPS tracking: L1, L2, L2C, L5 GLONASS tracking: L1, L 2 BeiDou tracking: B1, B2 Galileo tracking: Supported* Positioning rate: 20 Hz, 5 Hz SBAS: EGNOS, WA AS, MSAS, GAGAN, QZSS RECEIVER ACCURACY** Static horizontal: 3 mm ± 0.5 ppm (rms) Static vertical: 5 mm ± 0.5 ppm (rms) Kinematic horiz.: 8 mm ± 1 ppm (rms) Kinematic vertical: 15 mm ± 1 ppm (rms) QUALITY MODE Selectable: ExtraSafe, Standard
INTERFACES Keyboard: On/off and function keys LED status indicators: Position, battery, Bluetooth®, RTK receive, RTK transmit, storage card, Wi-Fi® LED mode indicators: Rover, base, static Data recording: MicroSD card, 4 GB internal memory GSM/ TCP/IP: Removable SIM card | COMMUNICATION GSM/GPRS module: Quad-Band GSM & Penta-Band UMTS 800 /850 /900 /1900 /2100 MHz UHF radio module: 1000 mW transceiver, 403 – 473 MHz Bluetooth®: Device class II TNC connector: UHF antenna, UMTS/GSM antenna Communication port: USB, serial & power POWER SUPPLY Internal battery: Removable 3.4 Ah / 11.1 V Operating time: 6 h in static / 5.5 h in rover mode External power: 9 V to 18 V PHYSICAL SPECIFICATIONS Dimensions: Height 131 mm, ø 161 mm Weight: 1.17 kg without battery Operating temp.: – 30°C to 60°C Protection class: IP68 dust and waterproof Humidity: 100%, condensing Vibration: ASAE EP455 Section 5.15.1 Random, MIL-STD-810G, method 514.6E-I Shock: Withstands 2 m drop ontohard surface |
* The optional Galileo tracking will be made available once there are sufficient satellites; ** Measurement accuracy and reliability are dependent on various factors including satellite geometry, obstructions, observation time, ionospheric conditions, multipath, etc. Figures quoted assume normal to favorable conditions.
