In addition to new products we always have a variety of used instruments available. The images above don't necessarily reflect current inventory; call us to find out what's here now.

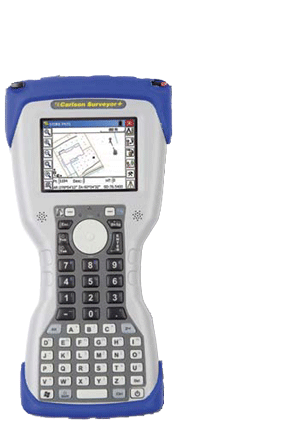

Carlson Surveyor+

Discountinued - some back stock may be available

* Call us @ 866-USSURVEY for best pricing!

** Not all configurations are necessarily in stock; please allow up to two weeks for delivery and as always, if you have questions we welcome your call or email.

 Technical Specifications:

Processor

  • Intel® XScale® PXA270

  • 624 MHz

Operating System

  • Windows Mobile 6.1, Windows Mobile Office programs standard

Memory

  • 128 MB RAM

Data Storage

  • 1 GB internal data storage

  • MicroSD/SDHC slot

Display

  • 3.5 inch (89mm) QVGA (320×240) color TFT LCD

Touchscreen

  • Sealed, resistive with touchscreen disable function

Keyboard

  • 52 key full alpha and numeric keyboard
  • Large keys color coordinated by function
  • Nine-way directional button
  • Backlit control keys
  • Sticky keys: ALT, 2nd, CTRL, Shift

Operating Temperature

  • –22° to 140° F (–30° to 60° C)

Storage Temperature

  • –22° to 140° F (–30° to 60° C)

Charging Temperature

  • 32° to 104° F (0° to 40° C)

Dustproof, Waterproof

  • IP67 Sealed rating, dustproof and waterproof

Drop, Shockproof

  • Multiple drops 5′ (1.5m) to concrete on all faces, corners, and sides

Batteries

  • Rechargeable Li-Ion battery
  • Capacity 3900 mAh
  • Run-time up to 16 hours*
  • Two battery slots
  • Run-time up to 32 hours with two batteries*
  • Built-in battery intelligence gauges charge level and prevents over charging the battery

Ports

  • Full size USB Host (A)
  • Mini USB Client (B)
  • COM 1 RS-232, 9 pin D connector, 5V@ 500 mA available on DTR (combined load on USB Host and DTR should not exceed 500 mA)
  • COM 2 RS-232, 9 pin D connector
  • 12VDC power/charging port, 10-18 V unregulated, reverse polarity and over voltage protection

Wireless Connectivity

  • Bluetooth Class I
  • Wi-Fi and International
  • Wi-Fi 802.11 b/g

Expansion Pack (Optional)

  • GSM/GPRS/EDGE data modem
  • RTK GNSS (GPS)

Internal Clock

  • Battery-backed real time clock

Enunciators

  • External power/charge LED and notification LED
  • Integrated speakers (two) and microphone

Dimensions

  • 10.49" long x 5.09" wide x 1.85" deep
  • (266 mm long x 129 mm wide x 47 mm deep)

Weight

  • 1.88 lbs (853 g) one battery
  • 2.09 lbs (948 g) two batteries

Certifications & Standards

  • FCC Class B / EN 60950 / RoHS Compliant / WEEE

Warranty

  • Electronics: 24 months (extended warranty available)
  • RTK GNSS Expansion Pack: 12 months (extended warranty available)
  • Battery & Chargers: 90 days

Included Accessories

  • Single Li-Ion Battery
  • Wall Charger with choice of adapter
  • Handstrap
  • Full-size Stylus
  • Stylus Storage
  • Screen Protector
  • Tripod Hook
  • Magnesium enclosure with elastomer end-caps

Optional Accessories

  • Additional Li-Ion Battery(ies)
  • Vehicle Charger
  • External Battery Charger

*Actual run-time depends on application and configuration
