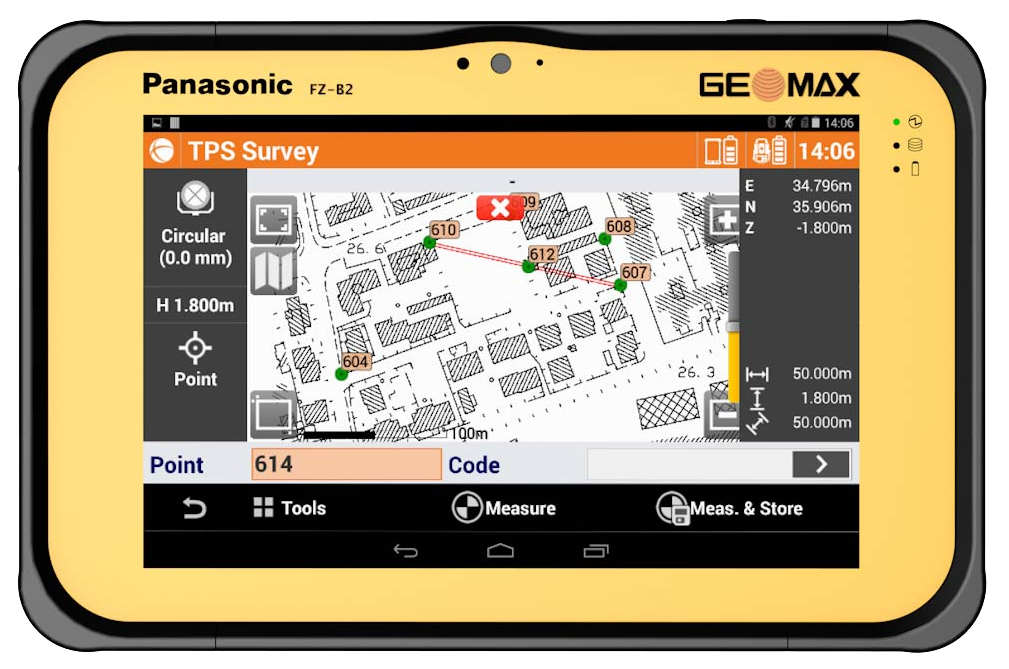

FZ-B2 ToughPad

The tablet specially designed for field professionals like you - fully rugged to support the most severe weather conditions and equipped with a powerful processor, Android® 4.4 and Bluetooth®. The FZ-B2 will boost your performance not matter the challenge you face.

Outdoor can hide nothing from this tablet. It multi-touch and sunlight-viewable screen allows you to interact with it without even taking off your gloves. Its ergonomic and lightweight design naturally fits into your hands, and because accidents in the field can happen, FZ-B2 is also shock resistant and water and dust proof.

Resistant to challenging working conditions with extreme performance thanks to its flexible configurations, connectivity options and Android® functionality that will take your efficiency to the next level.



FZ-B2FZ-B2

CONNECTIVIY AND PERFORMANCE

  • Intel Celeron 1.83 GHz
  • Android 4.4
  • Bluetooth 4.0

DESIGNED FOR FIELD PROFESSIONALS

  • Compact & lightweight design
  • High-visibility 7“ display
  • Dual front and rear camera

FULLY RUGGED

  • 180 cm shock resistant
  • Multi-touch screen
  • Rain mode

* Call us @ 866-USSURVEY for best pricing!

** Not all configurations are necessarily in stock; please allow up to two weeks for delivery and as always, if you have questions we welcome your call or email.


SYSTEM

Mobile computing

platform: Intel®Celeron 1.83 GHz N2930 processor

Operating system: Android® 4.4

RAM: 2 GB

Graphic chip: Intel® HD Graphics

CAMERA

Front: 2 MP

Rear: 5 MP w/ autofocus & LED light

DATA COMMUNICATION

4G LTE: Broadband Gobi 5000

Bluetooth®: 4.0 + EDR Class 1

WLAN: Intel® Dual Band Wireless - AC7260

Sound: WAVE and MIDI playback, Intel® High Definition Audio subsystem support, internal microphone for webcam

Data storage: 32 GB eMMC





INTERFACE

Display: 7” sunlight-viewable WXGA

Active Matrix (TFT) IPS LCD w/

circular polarizer (up to 500cd/m2

brightness); multi-touchscreen

I/O Interface: USB 3.0; headset; port replicator connector; microSD/SDHC memory card

POWER SUPPLY

AC Adapter: Input 100V - 240V AC, 50Hz/60Hz; Output 16V DC, 3.75A

Battery: Lithium-Ion (7.2V, 3320mAh)

Operating time: Up to 7 h

PHYSICAL SPECIFICATIONS

Dimensions: 203 (W) x 18 (D) x 132 (H) mm

Weight: 540 g

Protection class: IP65*

Drop resistance: 180 cm**



* One option exclusive possible in configuartion port / business expansion module.
** Tested by an independent third party lab following ML-STD-810G and IEC 60529, Sections 13.4, 13.6.2, 14.2.5 and 14.3.
